- Place of Origin: Chengdu china
- Brand Name: neton
- Model Number: 1-5
Product Features

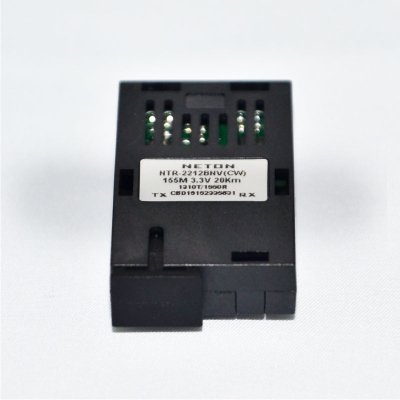

. Multi-sourced 1×9 pin packaged
. 1310nm FP or 1550nm FP /DFB Laser Transmitter
. SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
. Up to 120Km with 9/125um SMF
. Single 3.3V, 5V, power supply
. PECL or TTL signal input and output
. Wave solderable and washable with process plug inserted
. Two temperature ranges:
0℃ to 70℃
-40℃ to 85℃ for industry level
Application
. ATM equipments
. SONET SDH equipments
. Fast Ethernet
. Other Optic Linic
Remarks:
1.Dural fiber, BIDI, SM/MM products available.
2.Transmitter and Receiver Products avaicable
- Place of Origin: Chengdu china
- Brand Name: neton
- Model Number: 1-5
Order Information
Type | Data Rate(bps) | Description | Voltage |
NTR-20XX | 500K | SM, 20-40KM | 5V |
NTR-21XX | 52M | SM OC-1, 20-120KM | 5V |
NTR-22XX | 155M | SM OC-3, 20-120KM | 3.3V/5V |
NTR-26XX | 1250M | SM OC-24, 20-100KM | 3.3V/5V |
NTR-28XXV | 2488M | SM OC-48, 20-80KM | 3.3V |
NTR-201X | 500K | SM BIDI 20-40KM | 5V |
NTR-211X | 52M | SM BIDI OC-1, 20-80KM | 3.3V/5V |
NTR-221X | 155M | SM BIDI OC-3, 20-80KM | 3.3V/5V |
NTR-261X | 1250M | SM BIDI OC-24, 20-60KM | 3.3V/5V |
NTR-281XV | 2488M | SM BIDI OC-48, 20-60KM | 3.3V |
customized | customized | customized | customized |
