- Place of Origin: chengdou china
- Brand Name: neton
- Model Number: 1-2
Product Features
. SMPTE 297-2006 Compatible

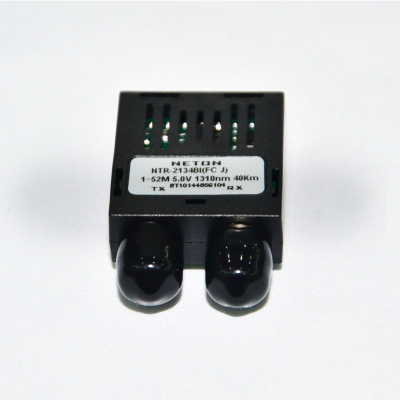

. 1×9 Optical Transceiver or SFP Optical Transceiver
. For SFP: Speed from 155 Mbps to 3Gbps with up to 60 km Single-mode Fiber
. Support Video Pathological Patterns for SD-SDI,HD-SDI and 3G-SDI
. SC/FC/ST Connector for 1x9
. LC Connector for SFP
. Single 3.3 V Power Supply
. RoHS-6 Compliant
. Operating Case Temperature Range 0℃~ 70℃
. Class 1 Laser International Safety Standard IEC-60825 Compliant
. Multi-Source Agreement (MSA) and SFF-8472 v9.3
Application
. SMPTE 292M/297M/259M Compliant Electrical-to-Optical Interfaces
. High-density Video Routers
Products cover
. HD-SDI Symmetry Optical Transceivers
. Asymmetry 1.5G/155M and 3G/155M BIDI optical transceivers
. 1.5G Transmitter and 3G Transmitter
. 1.5G Receiver and 3G Receiver
Type | Data Rate(Mbps) | Distance | Encapsulation | Voltage | Signal Level |
NTR-H82612L | Tx:155 Rx:1500 | SM 20Km | SFP LC | 3.3V | Tx:CML Rx:CML |
NTR-H86213L | Tx:1500 Rx:155 | SM 20Km | SFP LC | 3.3V | Tx:CML Rx:LVPECL |
NTR-H82614L | Tx:155 Rx:1500 | SM 40Km | SFP LC | 3.3V | Tx:CML Rx:CML |
NTR-H86215L | Tx:1500 Rx:155 | SM 40Km | SFP LC | 3.3V | Tx:CML Rx:LVPECL |
NTR-H82616L | Tx:155 Rx:1500 | SM 60Km | SFP LC | 3.3V | Tx:CML Rx:CML |
NTR-H86217L | Tx:1500 Rx:155 | SM 60Km | SFP LC | 3.3V | Tx:CML Rx:LVPECL |
Customized | Customized | Customized | Customized | Customized | Customized |
